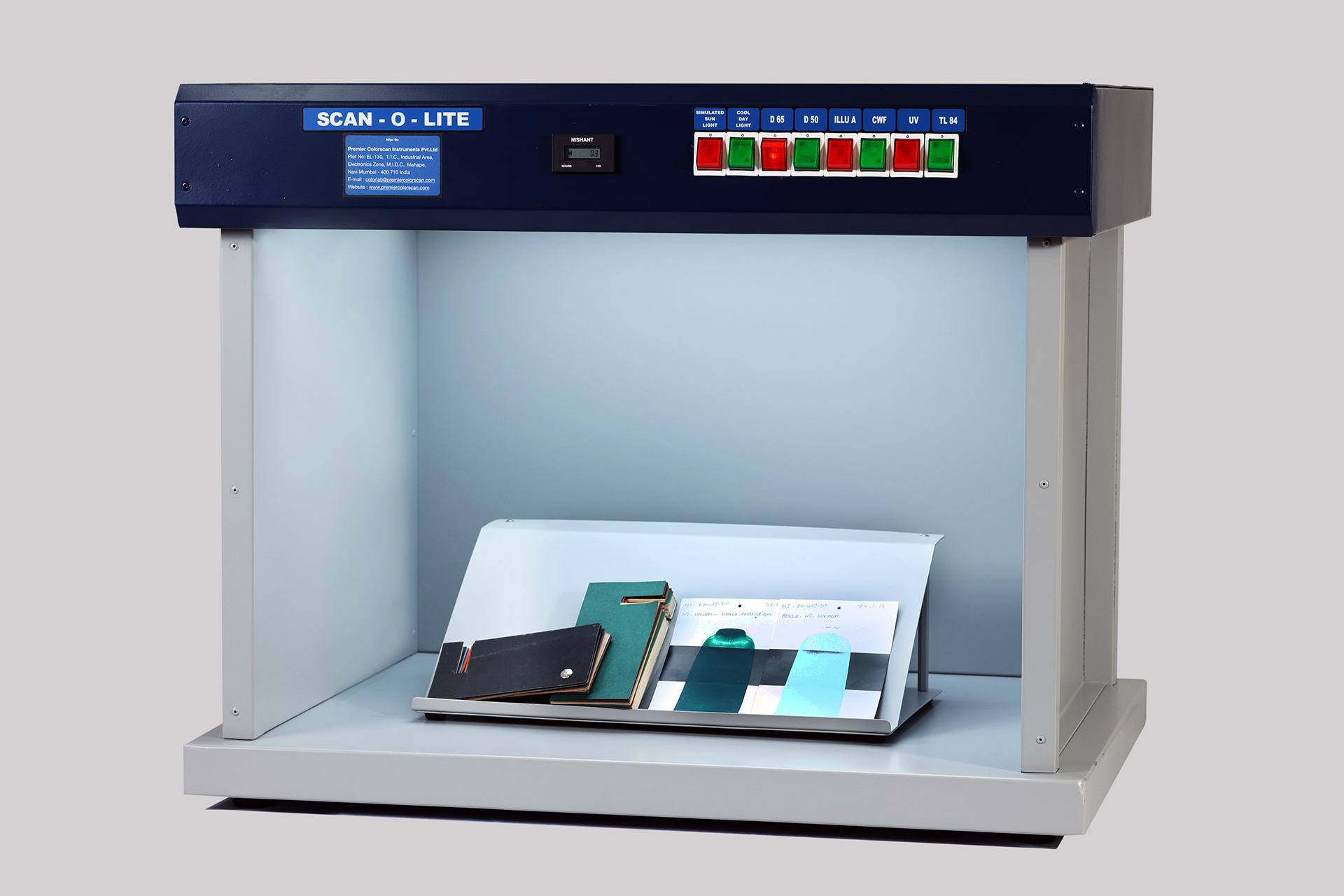

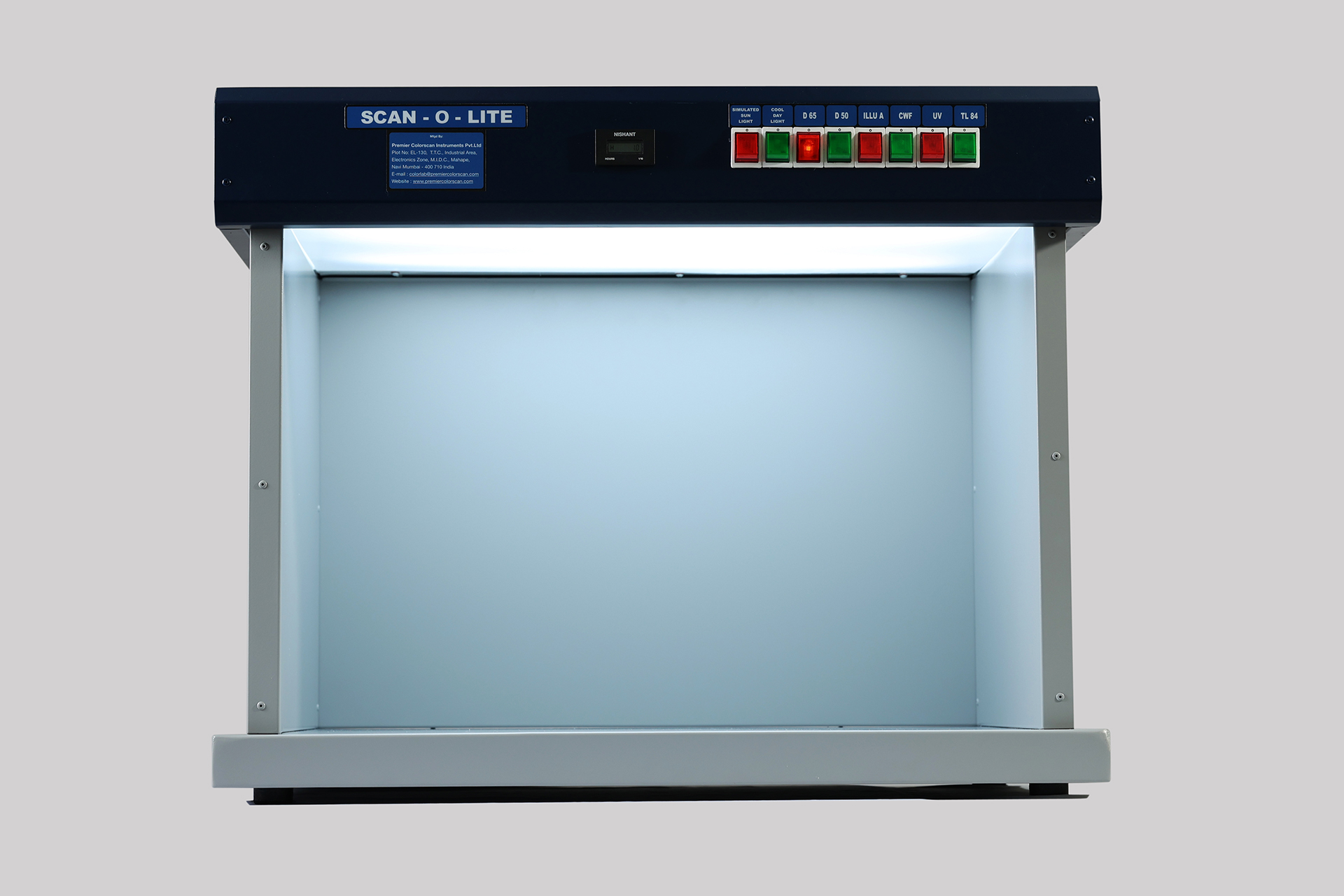

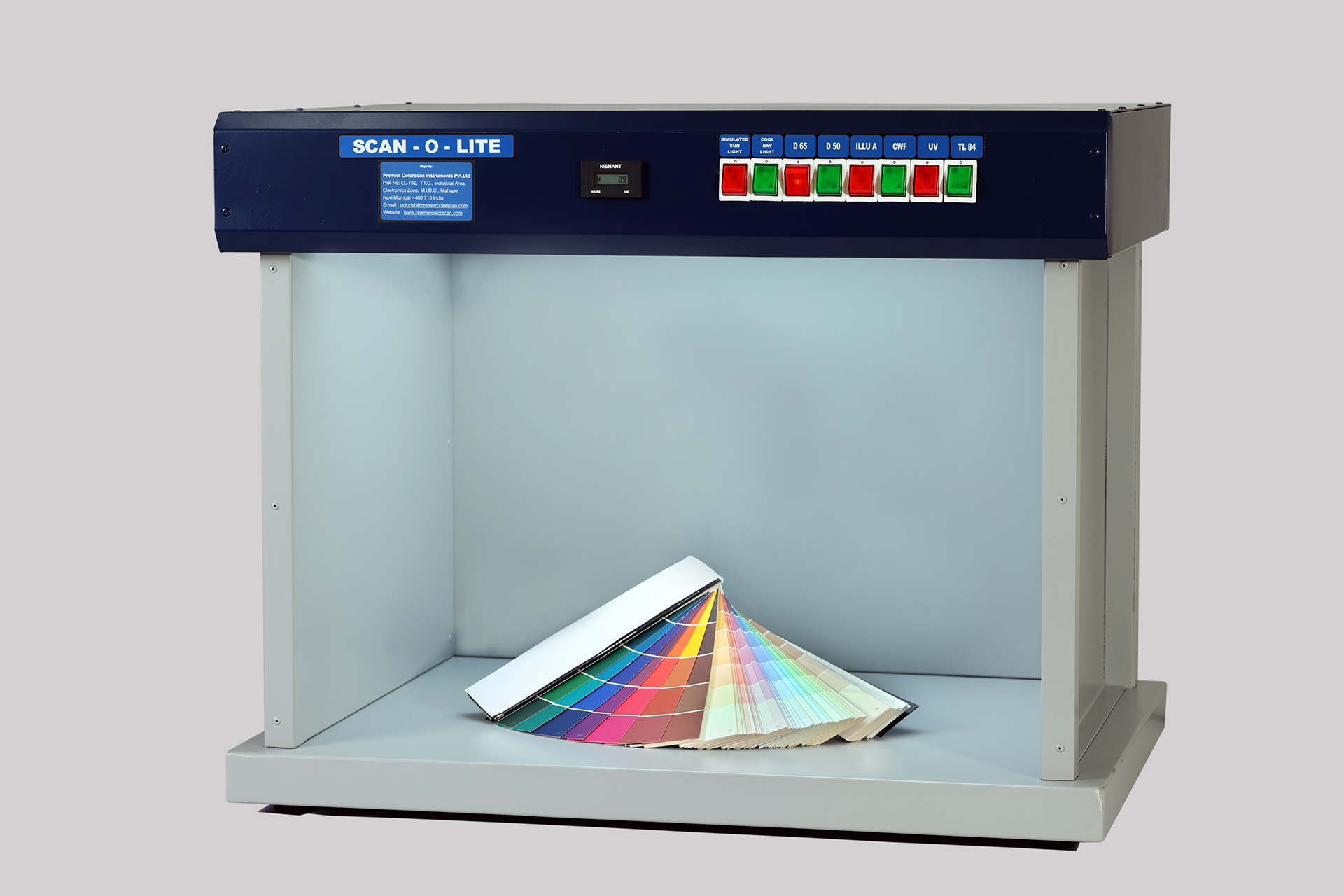

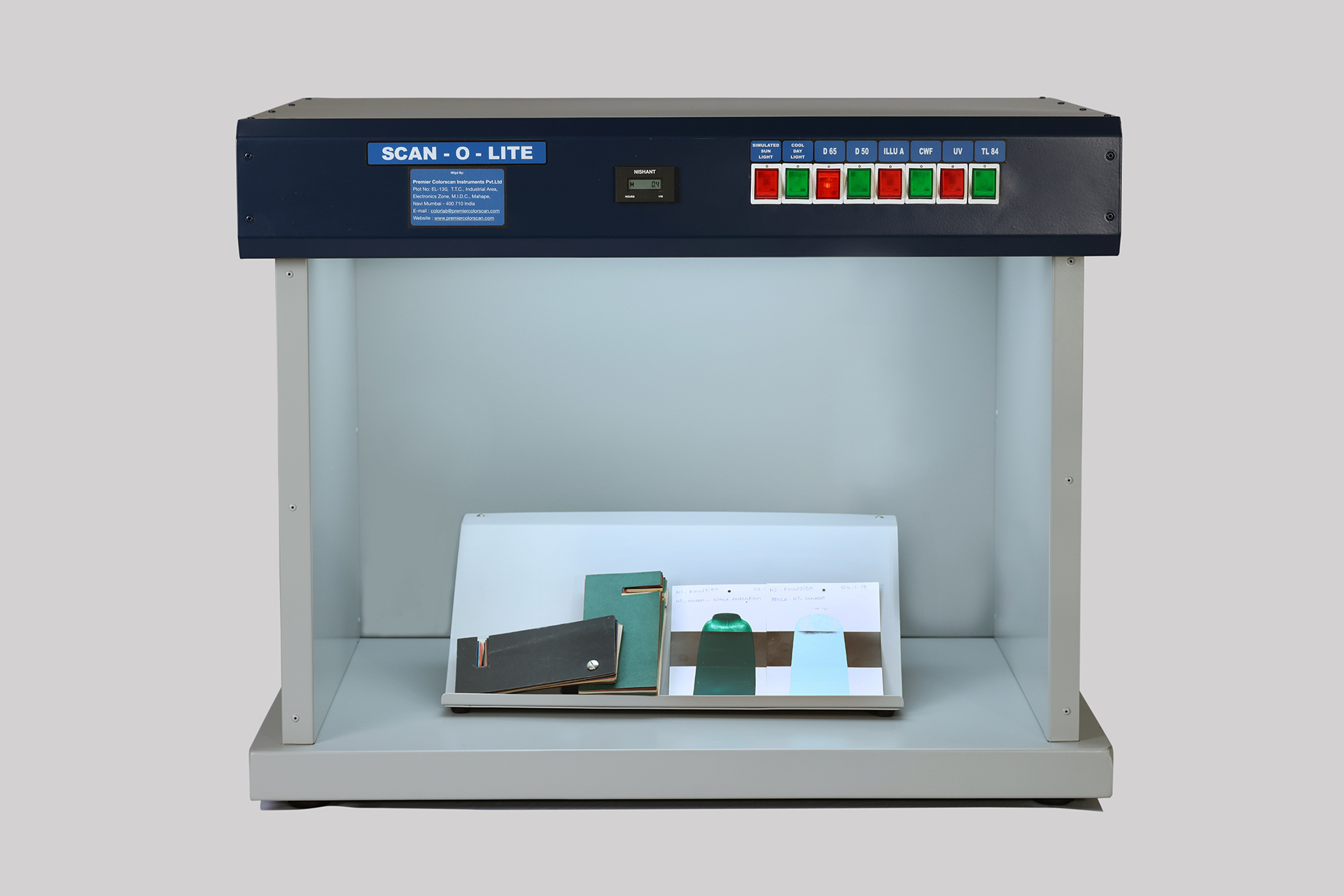

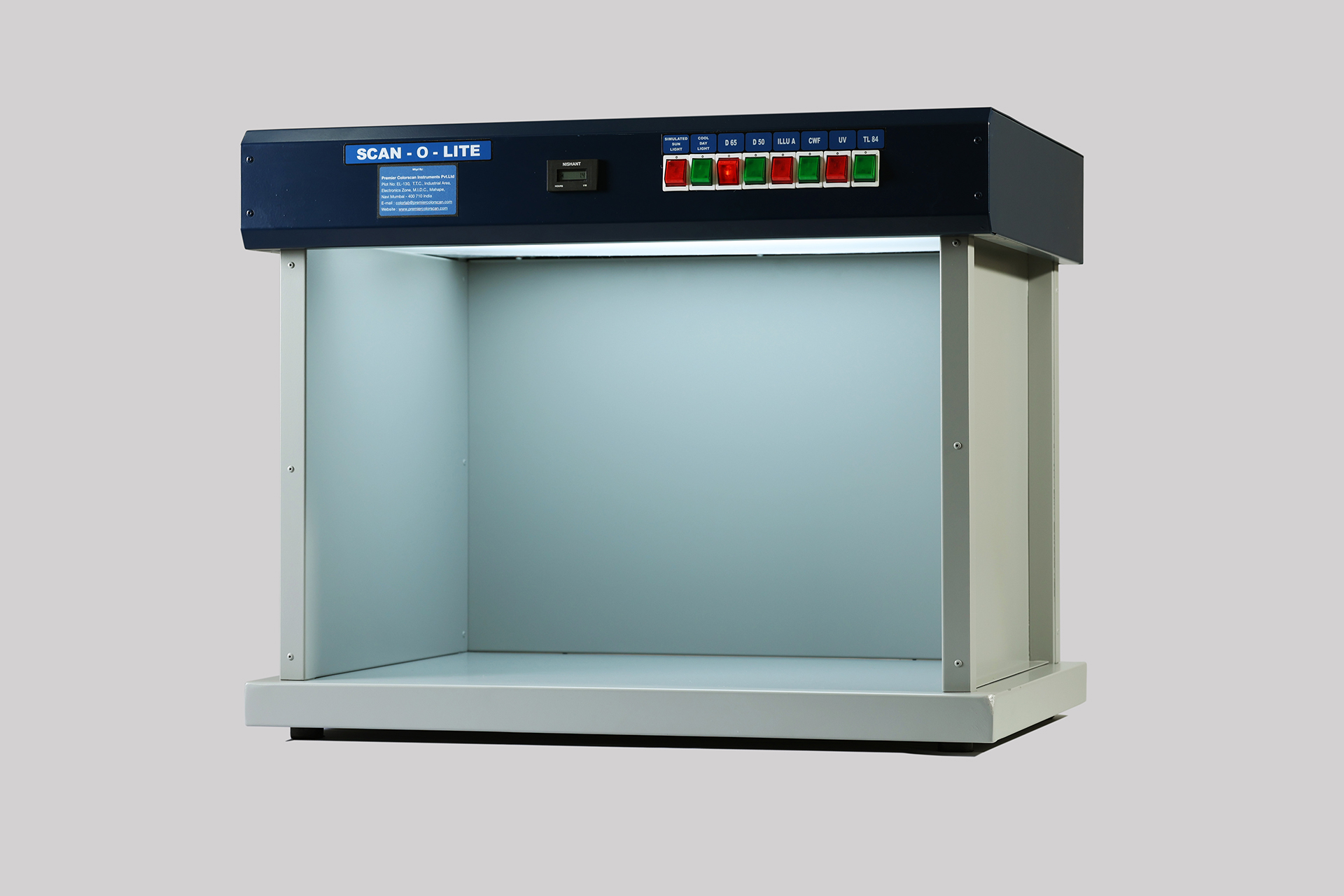

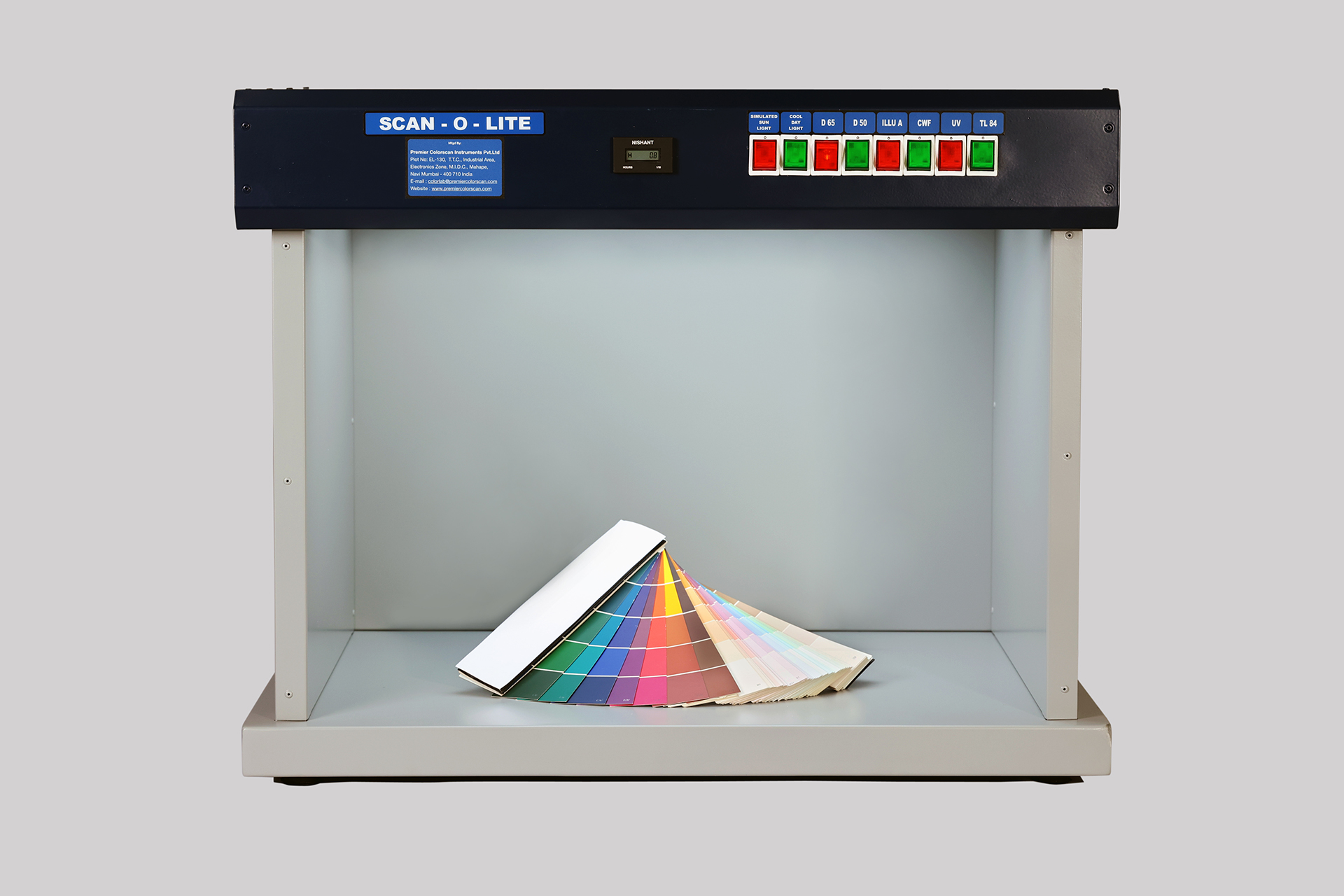

| Scan-O-Lite (2 Ft.) | |
| Dimensions | Outer - 30 in x 24 in x 30 in Viewing area - 20 in x 19 in x 25 in |
| Color of Cabinet | Gray - (Outside) Neutral Gray - (Inside) |
| Light Sources: | |
| Showroom Illumination | TL84 |
| Daylight | D65 |
| Incandescent Light | A |
| Ultraviolet Light | UV |
| Cool White Fluorescent | CWF |
| Daylight (5000K) | D-50 |
| Simulated Sunlight | |
| Cool Day Light | |

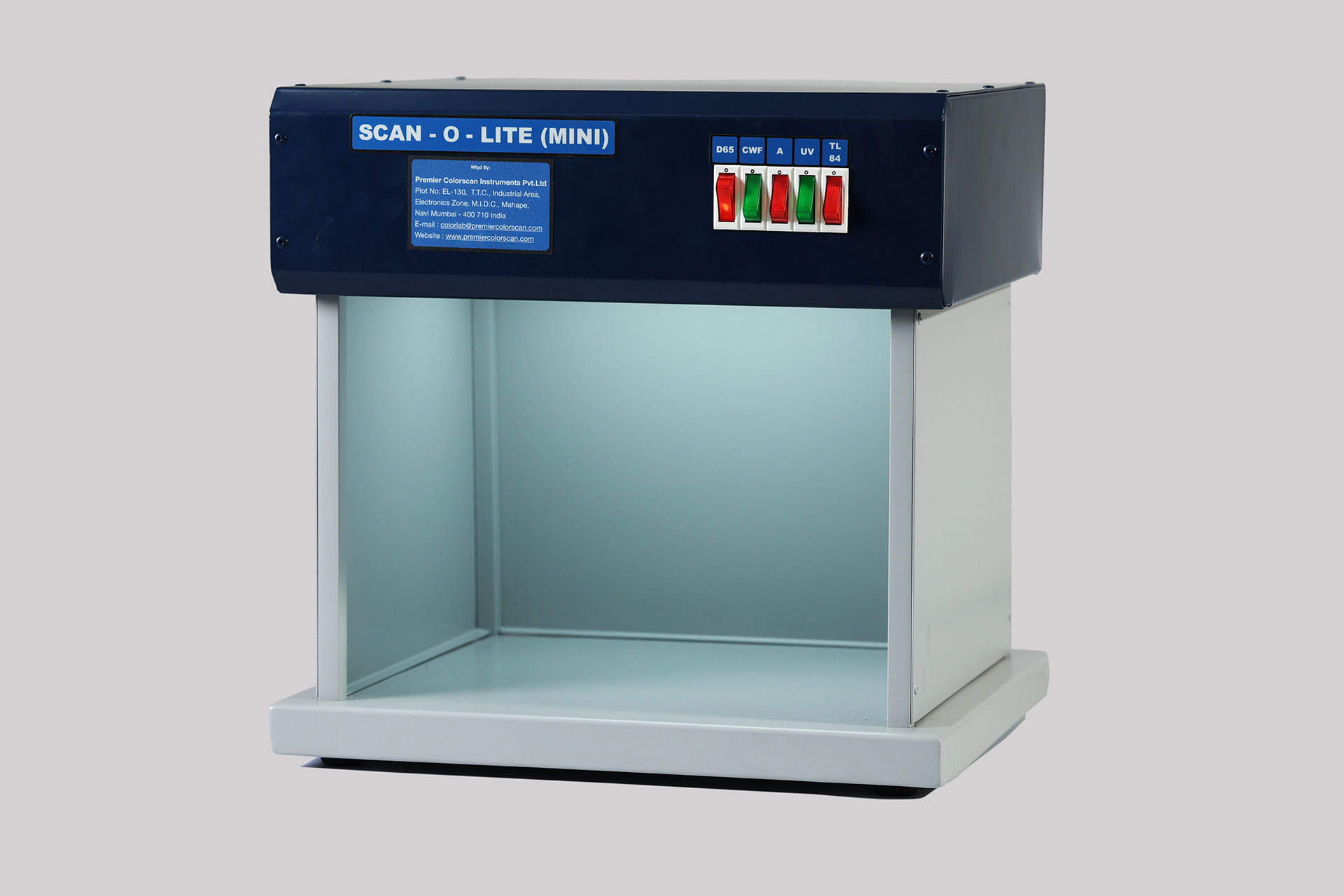

| Scan-O-Lite (1 Ft.) | |
| Dimensions | Outer - 14 in x 13 in x 14 in Viewing area - 12 in x 11 in x 09 in |
| Color of Cabinet | Gray - (Outside) Neutral Gray - (Inside) |
| Light Sources: | |
| Showroom Illumination | TL84 |
| Daylight | D65 |
| Incandescent Light | A |
| Ultraviolet Light | UV |
| Cool White Fluorescent | CWF |
| We can offer other illuminants like Horizon, UL30 etc. optionally. | |
Products & Services
Color Inspection & Measurement Instruments

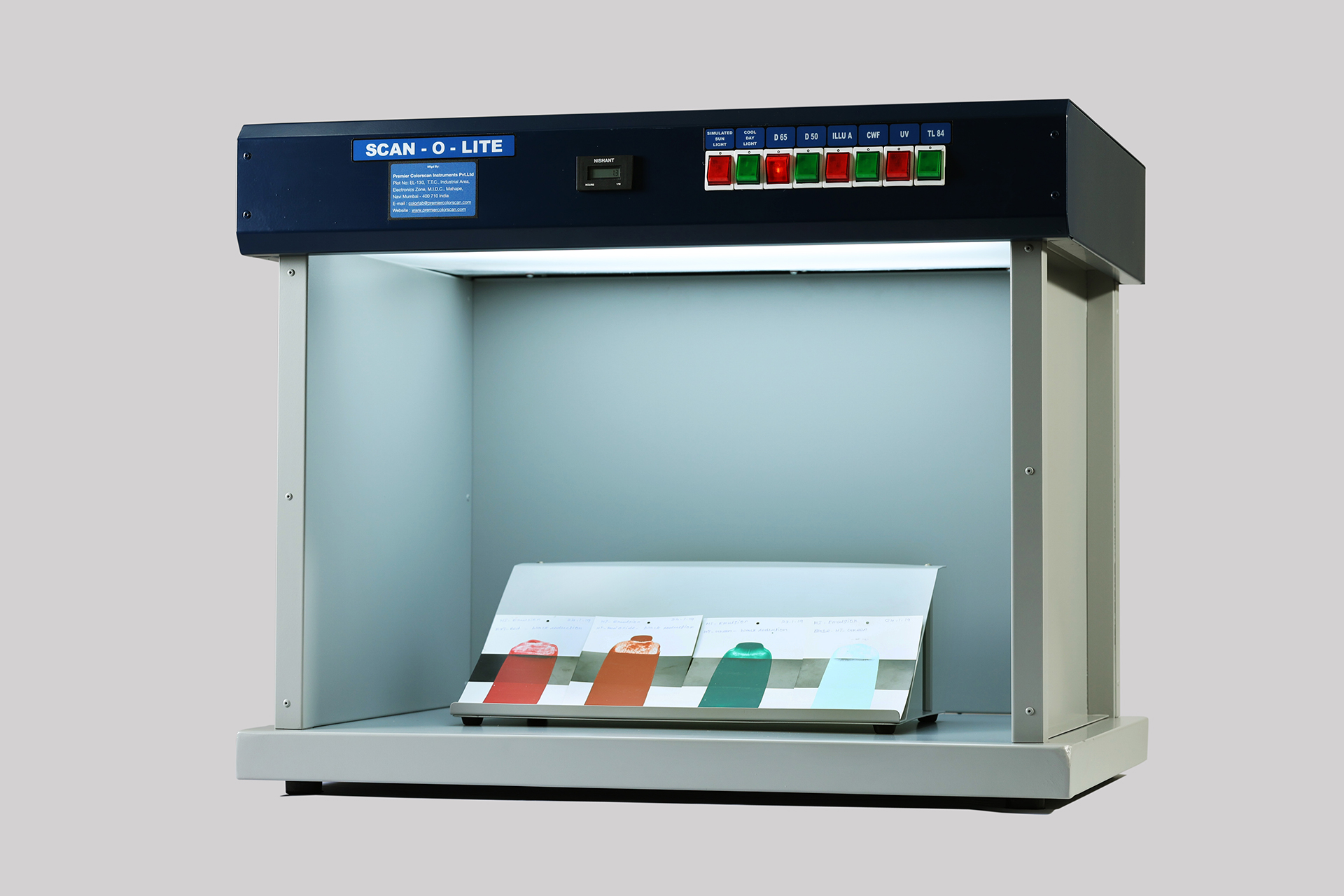

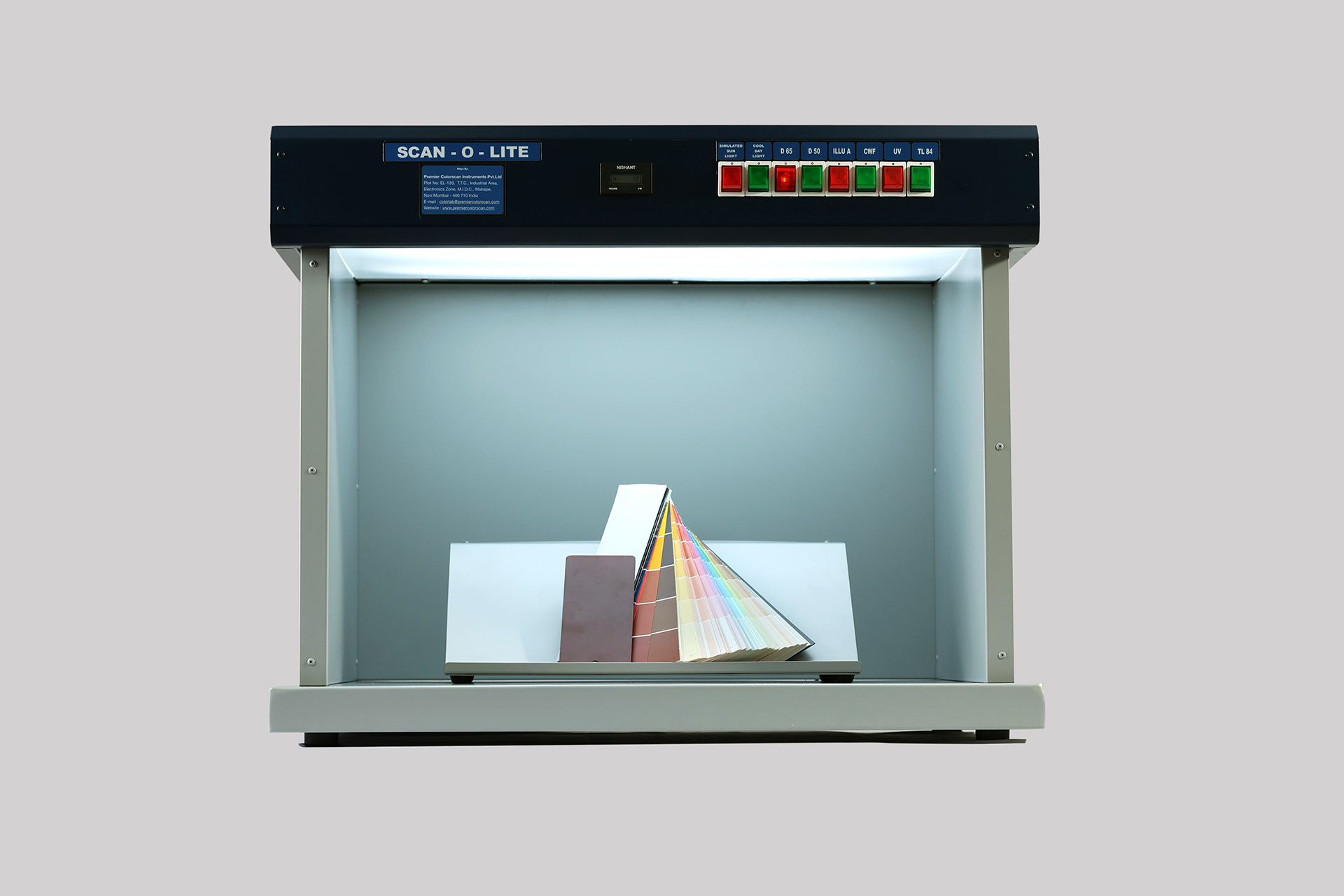

Scan-O-Lite
The importance of proper lighting for color matching need not be emphasized due to the phenomenon of Metamerism samples appear to match in one illuminant and mismatch in other illuminants.
Scan-O-Lite offers you consistency in illumination, whether it is in the day or night or whether you are examining color in your factory, office or at the customers end.
You are assured of uniform and standard illumination. Scan-O-Lite is a very important tool for your modern laboratory and on your shop floor.
Immediate visual check for metamerism, fluorescent pigments and strength of optical brighteners etc. changes here.
