| Measurement Modes | Reflectance & Transmittance |
| Measurement Principle | Dual Beam |
| Integrating Sphere Dimension | 152 mm Diameter |
| Light Source | Pulsed Xenon |
| Wavelength Range | 400 nm to 700 nm |
| Wavelength Interval | 10 nm |
| Photometric Range | 0% To 200% |
| Viewing Geometry | D/8 |
| Wavelength Accuracy | 0.1 nm (Avg.) |
| Repeatability | Less than 0.1 DE Cielab (White Tile) |
| UV Filter | Adjustable |
| Inter Instrument Agreement (LAV) | 0.15 DE Cielab (Max.) |
| Measurement Time | 2 Sec. |
| Large Area View (LAV) | 25.4 mm Diameter |
| Small Area View (SAV) | 12.0 mm Diameter |
| Specular Component | Include / Exclude |
| Operating Temperature | 15°C to 32°C |
| Relative Humidity | <90% Non-Condensing |
| Electrical Requirements | 110-120Vac/50-60 Hz.Or 230-240 Vac/50-60 Hz. |
| Weight | 21 Kg Approx |
| Size | 61 cm X 29.5cm X 33cm |
Products & Services
Color Inspection & Measurement Instruments

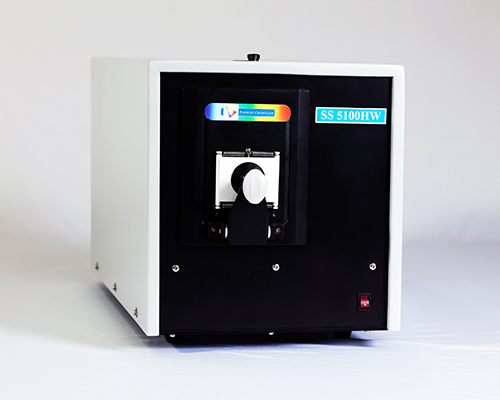

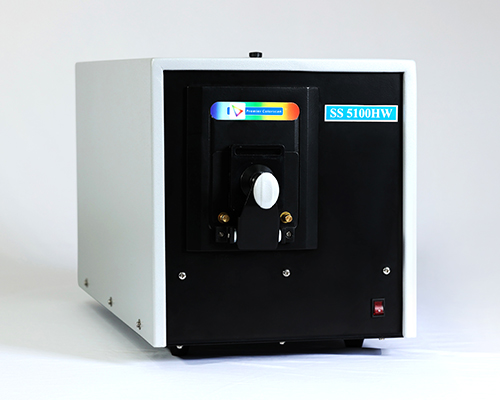

SS 5100HW Spectrophotometer
SS 5100HW Color Measuring Spectrophotometer is the result of our own in-depth study and sophisticated design after being in the field for long time. We have incorporated best features which can be seen on international class of spectros.
The integrating sphere conforms to CIE / ASTM specifications for size, which is 152 mm diameter. The source is a very stable long-life Xenon flash lamp which is carefully filtered to D65. The sphere wall is coated with very special highly reflective material, which reflects more than 99%.
The SS 5100HW comes standard with calibrated UV filter for OBA fluorescence quantification. This makes the SS 5100HW highly sultable for textile and OBA applications.
